Strong power: Four Wheel Frive Strong Climbing Capacity Shift High Low Speeds
Draggable Engine Tray: Engine Drag Out Convenient Maintenance Repair
Active Oscillation Axle: Perceive Terrain Keep Driving Force
Large Working Space: Double Direction Cylinder Large Platform Size
Outrigger: Extension Outer Arm Keep Banance
Standard Features | Optional Features |
● Foldable guardrail ● Diagnostic system ● AC wiring to platform ● 4 wheel drive ● Tilt level sensor with an audible alarm ● Lowering alarm ● Horn ● Hour meter ● Emergency pump ● Proportional Controls ● Solid rough tire ● Safety brackets | ● Automatic leveling hydraulic outriggers ● Airline to platform ● DC power supply ● Motor cold starting components ● Overload sensor ● Dual Flashing beacon ● Moveable alarm components ● Non-mark rough tires |
Configuration
Main Parts | Place of Origin | Brand |
Diesel engine | Japan | Kubota |
Hydraulic pump | Italy | Salami |
Cartridge valve | U.S.A | Hydra Force |
Reducer | U.S.A | Omni |
Driving motor | China | Li Ke |
Throttle actuator | U.S.A | SUMJACK |
Inclination sensor | Italy | BPE |
Control handle and controller | U.S.A | Delta Tech |
Meter | China | Kang Bo |
Controller | China | Kais |

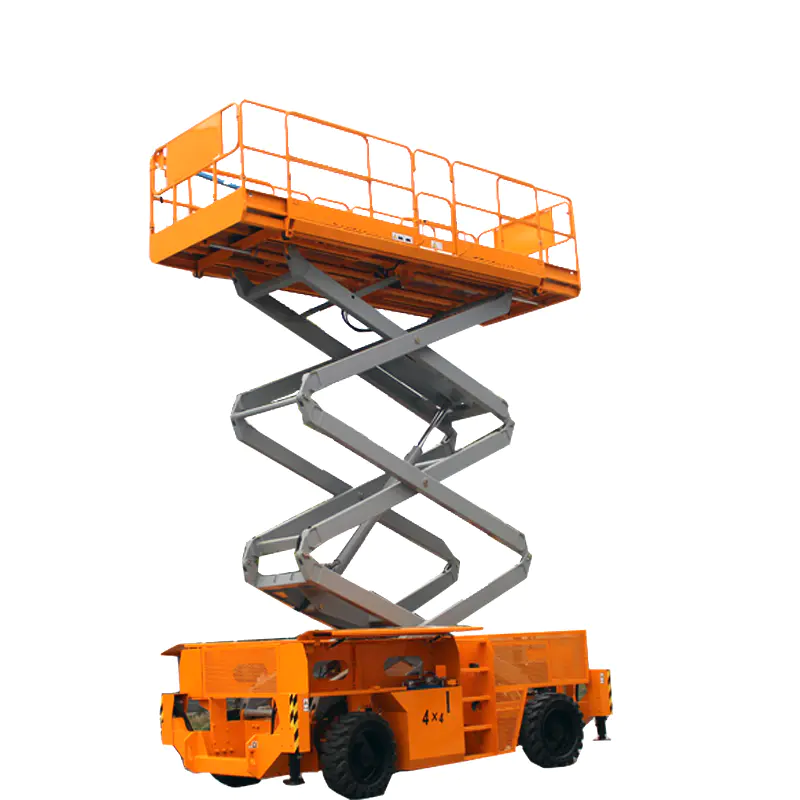

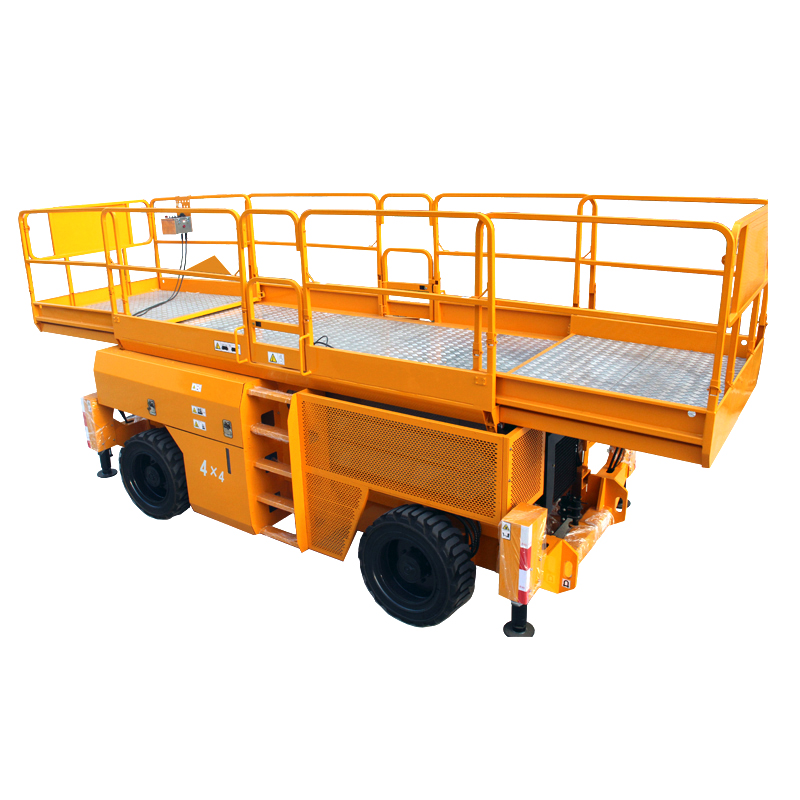

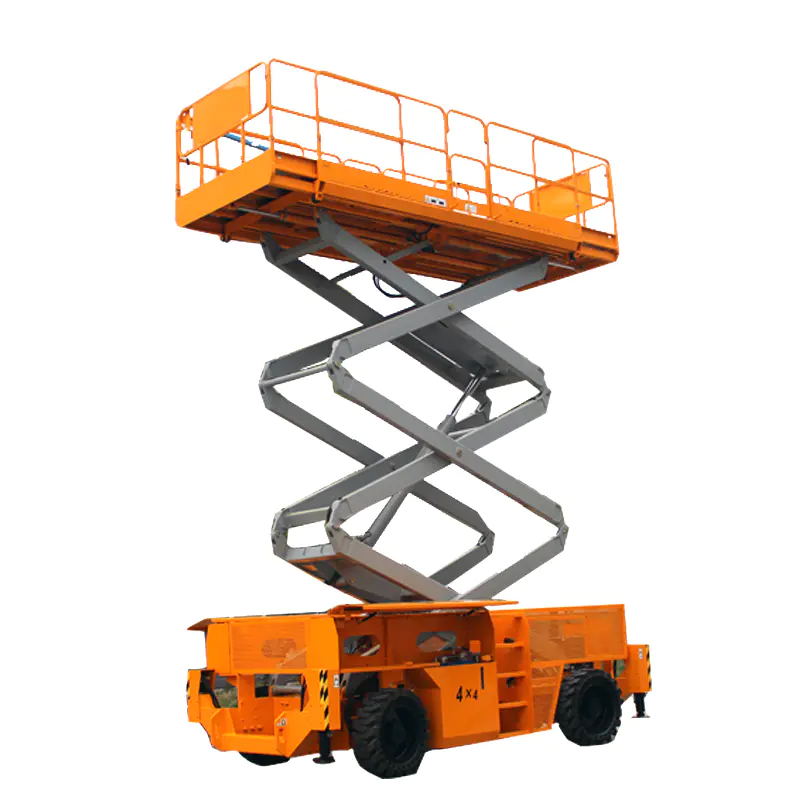

| Model Type No. | SP10D |
| Working Height Maximum | 12 m |
| Platform Height Maximum | 10 m |
| Lift capacity | 1150 kg |
| Lift capacity (extension deck) | 230 kg |
| Length Ⓓ | 4.2/4.81m |
| Width Ⓔ | 2.28 m |
| Height(stowed)Ⓒ | 2.81 m |
| Wheel baseF | 2.84m |
| Ground clearance-centerⒼ | 0.23 m |
| Platform measurement Ⓑ*Ⓐ | 3.95*1.83 m |
| Extension deck measurement | 1.22m+1.52 m |
| Turning radius inside /outside | 2.78m /4.95 m |
| Travel speed(stowed) | 6.3km/h |
| Travel speed(raised ) | 1.1km/h |
| Grade ability | 50% |
| Sold tire | 33×12-20 |
| weight | 6850kg |
| Fuel tank volume | 115L |
| Hydraulic tank volume | 170L |
| Drive mode | 4*4*2 |
| Engine | Yanmar |
